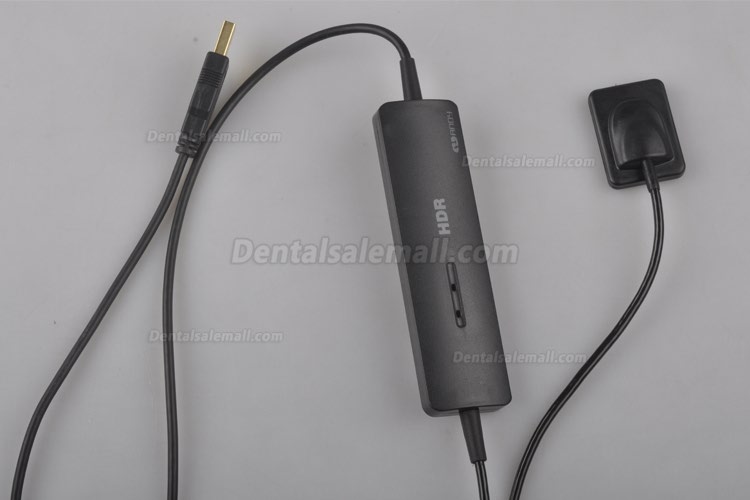

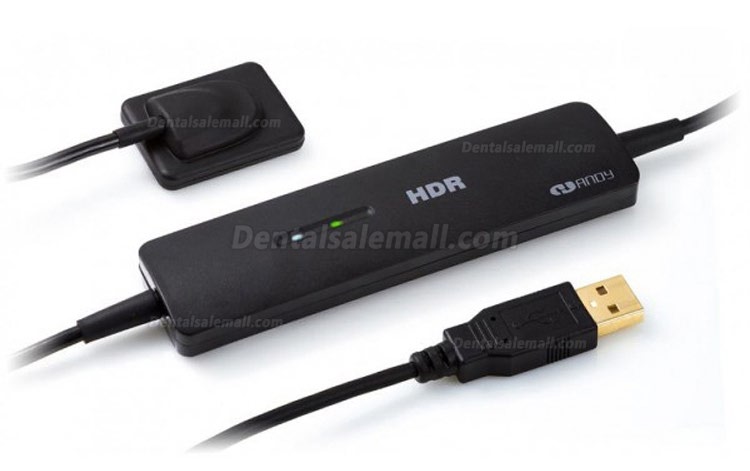

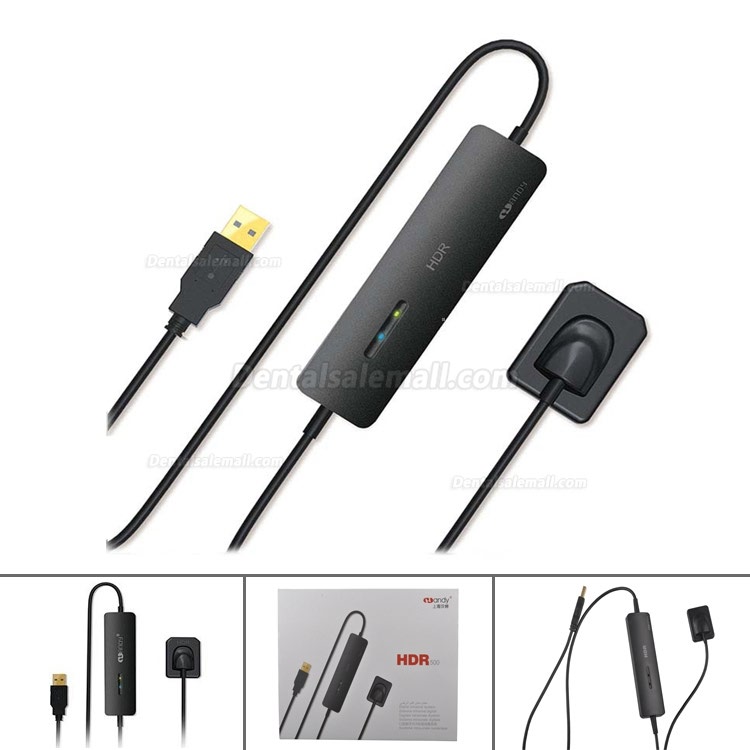

Handy High Resolution Digital USB Type Dental X Ray Sensor Rvg HDR-500B

Handy High Resolution Digital USB Type Dental X Ray Sensor Rvg HDR-500B

Features:
Model Number: HDR 500B
Chip Type: CMOS APS
Fiber Optical Plate: Yes Scintillator:
GOS/Csl: Ti
Dimension: 1.08" x 1.5"
Image Pixel: 1.9M(1600*1200)
Operation: Windows 2000/XP/Win7/Win8/(32bit&64bit)
X-ray Sensor Driver: TWAIN (Included)

Software:
Twain Ready! ... Supports: Dentrix, Dexis Open Dental, VixWin, & more
(Please Contact us to verify program is compatible with your system).

Technical date:

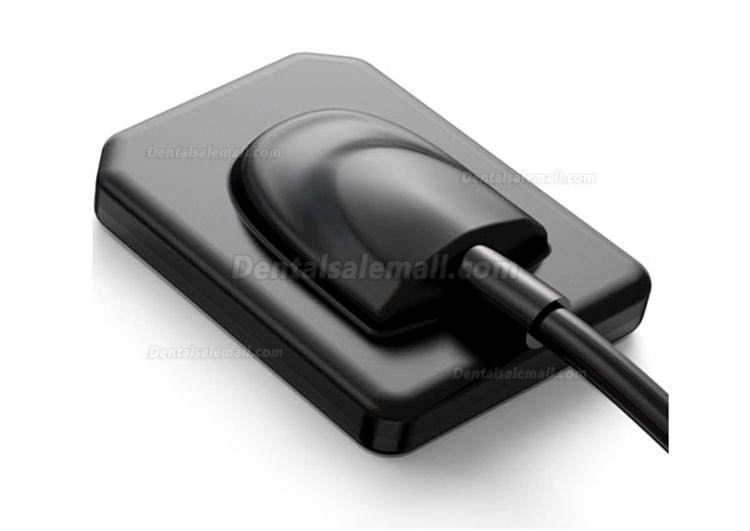

USB X-ray Sensor: APS CMOS
External dimension: 40mm × 26mm / 1.8" x 1"
Sensor Active Area: 30mm × 22.5mm / 1.2" x 0.89"
Sensor Thickness: 6mm (0.24 inches)
Dynamic Range: 0~4,096
Power: 5V±0.5V
Image Transfer: USB2.0
Cable Length: ≥ 3m (~10 feet)

Sharing the sensor between rooms:

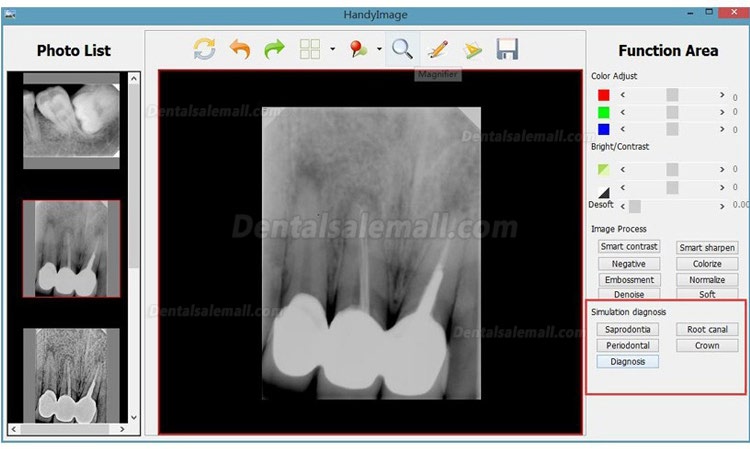

You can share the sensor between several rooms to provide access for several dentist based on Handy Server software. The computer must have the HandyDentist dental imaging software, and HandyServer must installed in one computer.
10 To share the sensor between several computers, move it from room to room. When you connect the sensor to a USB 2.0 port on the computer, the sensor is recognized automatically and is operational.
To share data between rooms, you can connect them to remote data---HandyServer database. The HandyDentist dental imaging software needs only to access a shared database on the same computer or on a remote computer, which means HandyServer
database.

Operating conditions:
Environment Temperature : +10℃ (50F) ~ +40℃ (104F)
Environment relative humidity : ≤95%;
Air pressure : 860hPa~1060hPa;
Transport and Storage conditions
Environment Temperature: -25℃ (77F) ~ +60℃ (140F)
Environment relative humidity : 10%~93%
Air pressure : 860hPa~1060hPa

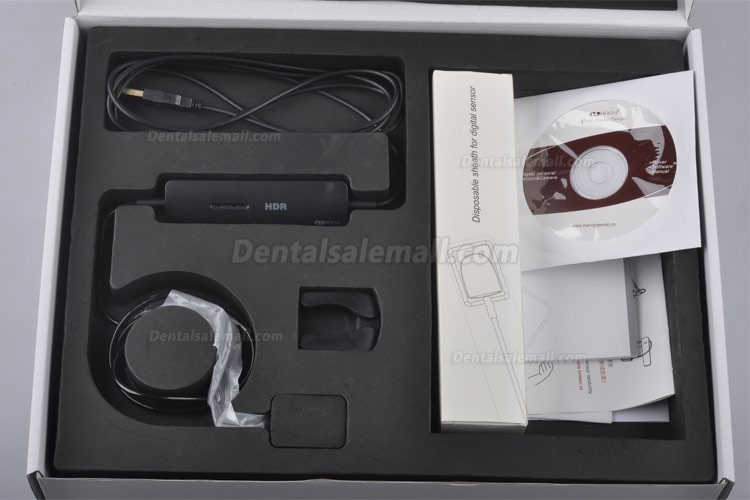

Packing include:
X-Ray Sensor and Control Box 1pcs
Manual
Driver (CD)
Flash Drive
Sensor Holder;
