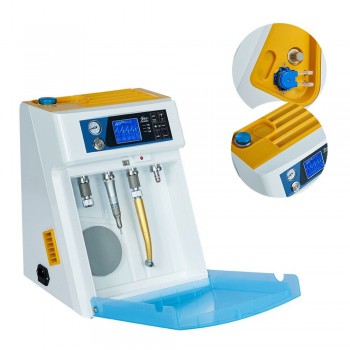

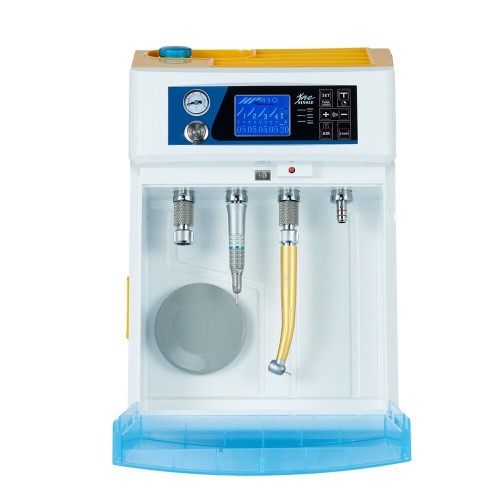

Automatic Dental Handpiece Cleaning and Lubrication System with 4 Interfaces 4 Hole HP-410

Automatic Dental Handpiece Cleaning and Lubrication System with 4 Interfaces 4 Hole HP-410

Note: The Handpiece Lubricator must be connected to the air compressor;

Features:
1. The appearance is neat, smooth ;
2. No cracking, scratches, bare bottom, foaming, and incomplete spray paint phenomenon;
3. Complete and clear identification.
4. Compact structure, convenient operation, safe and reliable;
5. The sealed door effectively prevents the oil mist from spreading and ensures a clean working environment.

Functions:
· Can maintain 4pcs high-speed handpiece or 4pcs low-speed handpiece simultaneously.
· Used in the maintenance of various brands of low-speed handpiece and high-speed handpiece.
· With the function of oil filling time control, can accurately control the oil filling time.
· Specially designed "air key" can remove excess residual oil in the handpiece after oil injection and cleaning.
· Oil mist diffusion is effectively reduced to a minimum with sealed doors and suction filter system, Ensure a clean working environment.
· Intelligent working mode, no need to set the filling time every time.

Technical specification:
(1) Rated voltage: AC110V~220V, 50HZ~60HZ (general)
(2) Rated power: 50W
(3) Air source pressure: 5Kg/ c ㎡ -8Kg/c ㎡
(4) Working pressure: 4.2Kg/ c ㎡ -4.5Kg/c ㎡
(5) Oil tank capacity: 200ml
(6) Motor parameters: A. Rated voltage: 12V DC
B. Rated power: 6W
C. Rotation speed: 3000 RPM
(7) Working environment temperature: 5℃-40℃
(8) Net weight: 7.2KG
(9) Size: 260×260×350 (mm)
(10) Outer packing size: 350×370×460 (mm);

Packing list:
1pcs handpiece lubricator
1pcs product manual
5pcs Absorbent cotton
1pcs funnel
1pcs High and low speed interchange connector
1pcs Spare fuse
8pcs Spare sealing ring for low speed connector
3pcs Quick connector
1pcs filter element
