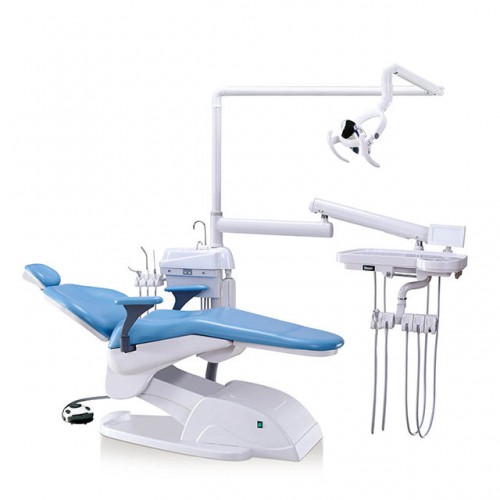

DSM-A800 Simple Adult Dental Chair Treatment Unit PU Leather Cushion

DSM-A800 Simple Adult Dental Chair Treatment Unit PU Leather Cushion

Description:
1. Mode A800 is a dental comprehensive treatment machine with affordable price but no lack of practicability and humanized design;
2. From the perspective of the dental patient, the soft vacuum memory cotton PU cushion and the ergonomic design are combined, so that the patient can get a good comfortable effect in the treatment process;
3. From the perspective of the operator dentist, simple and understandable operation procedures are more convenient;
4. From the point of view of after-sales maintenance, the simple shell assembly method can quickly check the internal parts, saving time and effort.

Standard Configuration:
1.Electronic chair×1set
2.24v DV noiseless motor control ×1set
3.China made electromagnetic valve×2pcs
4.China made water/air tubing×1set
5.3 way syringe cold/hot×1pcs
6.Dentist instrument tray×1set
7.Saliva/suction system(one strong/one weak)×1set
8.Led x ray film viewer×1set
9.Air lock system for instrument tray×1set
10.Purified water system×1 set
11.Flush water and cup water control system×1set
12.PU leather cushion×1 set
13.Multifunctional foot pedal×1set
14.LED light with sensor×1pc
15.Dentist stool×1pc;


Technical Parameters:
1. Power supply: AC220V/50Hz,110V/60HZ.
2.Input power: 750VA.
3.Fuse specification: general net source: FRI-20 5X20 6A.
4.Cold light: AC12V/50VA AC10V/50VA.
5.X-film viewer: AC V/12VA.
6.Water supply thermostat: AC220V/24VA.
7.DC Motor: DC24V/≤3.8A .
8.The burden weight on the instrument tray: 1.5KG .
9.Water Pressure:0.2-0.40 Mpa/2.0-4.0 bar
10.Air Pressure:0.55-0.80 Mpa/5.5-8.0 bar
11.Output :≥55 L/min(Water vacuum);≥120 L/min(Air vacuum);


Patient chair:
1)DC motor driving system.
2)Can move up or down or stop optionally.
3)The length of the chair: 1800MM；Patient chair (chair cushion) minimum height: 540mm,maximum height: 850mm,backrest angle 0°-75°；The load capacity of the patient chair is ≦200Kg.
4)Chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic.
5)Injection moulding humanized designed comfortable backrest.
6)Double handrail design:the right armrest can be rotated and removed backwards.
7)Folding headrest:Lockable;Adjusted and locked at will.


Dental operatory light:
1)Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
2)Users can switch the light on/off in a manual or induction mode.
Technical Parameters：
Power supply: AC12-24V
Power consumption:6W
LED light:1PCS
Light intensity(lux):>35000LUX
Dimension of pattern:80X160mm(in the 700mm)
Colour temperature: 5000-6000k
CRI:85%
Shadow(solution):<ø12mm
Eye intensty(lux):<200lux
Interatcion range:20-80mm
Joint dimension:ø22

PU Leather Colour Sheet (We can customize dental unit according to your requirement)

Certificate:
